Street Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street Light

Product Description


LED Street Light Cover MLT-SLH-HM-II
 LED Street Light Housing, led street lamp housing, led street light casing

Brief Introduction

This LED street light cover MLT-SLH-HM-II is the small size of SMD LED street light housing from street light shell supplier Moonlight LED street light H series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for variety of LED roadway lighting applications.

FeatureDurable aluminum alloy die-casting LED street light cover for heavy-duty outdoor lighting applications.Ribbon-free and compact design.Easy drainage system.Separate LED light engine and driver box for easy maintenance.Tool-less design for replace the LED driver without any tool.Large driver box complies with variety of drivers and dimming options.Both cover and bottom of the driver box have the GND bosses for security.Plastic electrostatic spraying to resist corrosion, chipping and fading.Adjustable knuckle slip fitter help to adjust the led street light fixture on-site for optimal photometric performance, which make sure that the light distributions, are specifically adapted to the real needs of the area to be lit.Side-entry or post-top mounting. Universal mounting pieces allows precise adjustment on-site.5mm high light transmittance tempered glass diffuser.Silicon gaskets.SUS304 stainless steel bolts for fastening.The powder coated die-cast clips make it a harmonious overall with the rest of the luminaire.Twist lock photocell mounting platform for lighting control.Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.IP66 rated, protect from all dust and harsh weather.Standard sanded gray finish.Easy to assemble, install and linemen friendly maintain.Mechanical Dimensions
Street Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street Light

 Parameter
Model No.LED Street Light Housing MLT-SLH-HM-II

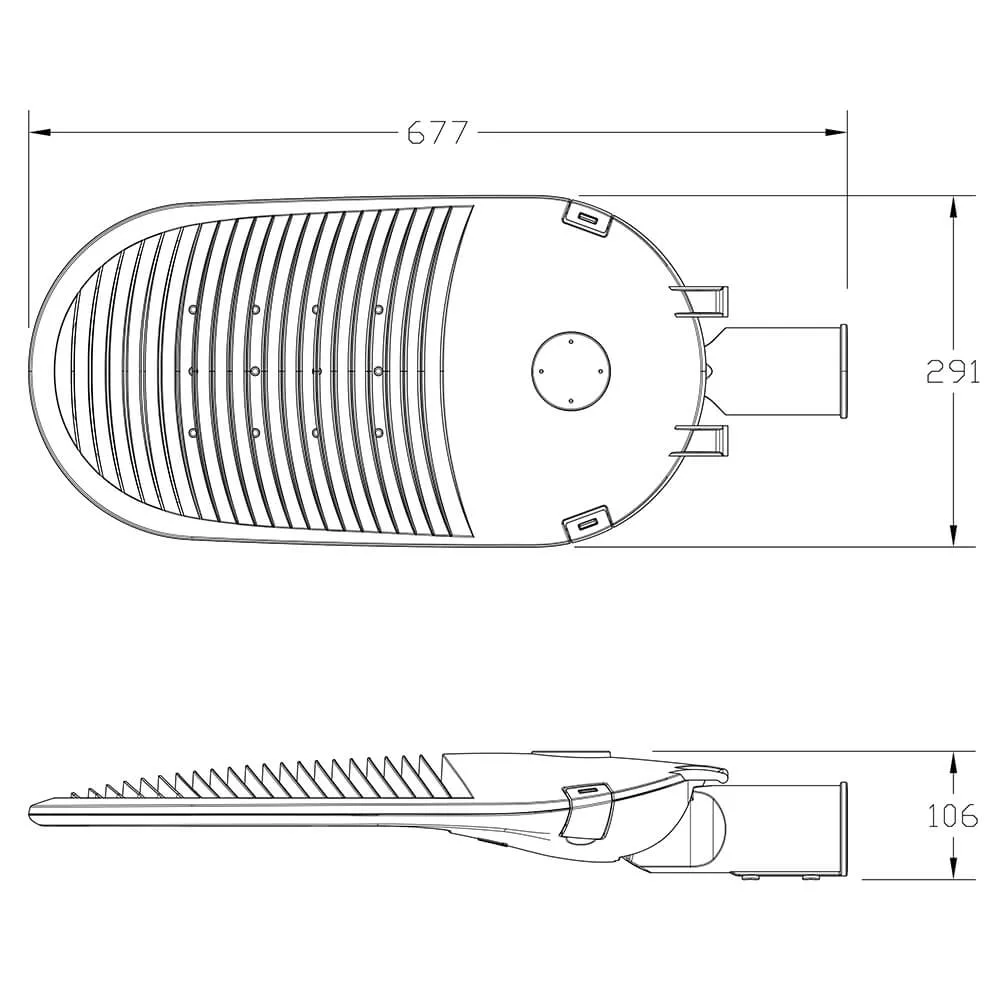

Dimension of Housing67.7cm(L)*29.1cm(W)*10.6cm(H)
Fixture MaterialDie-casting Aluminum Alloy
Die-casting Aluminum Alloy Weight4000g
Surface Finish ColorSanded Gray or Customized color
Material of DiffuserHigh Transmittance Tempered glass
Effective MCPCB Mounting Size245mm(L)*188mm(W)
Compatible Lenses12PCS 50mm*50mm Lenses
Recommended LED Power100W to 150W
Driver Box Dimension224mm(L)*70mm(W)*48mm(H)
Pole MountingAccommodates up to Φ60mm pipe
Adjustable Slip Fitter-15°to +15°
Standard PhotocellOptional
Quick Disconnection Terminal BlockN/A
IP RatingIP65
ApplicationThis heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 100W-150W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.Packing
Street Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street Light

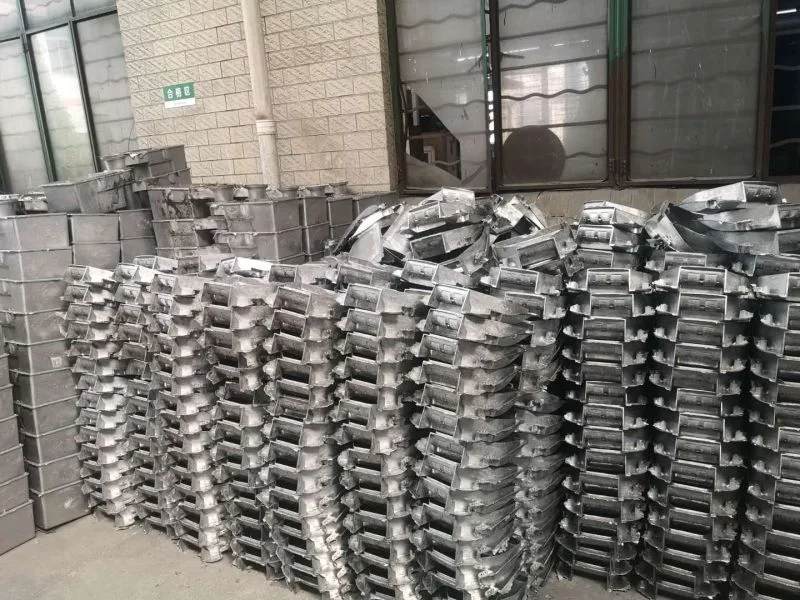

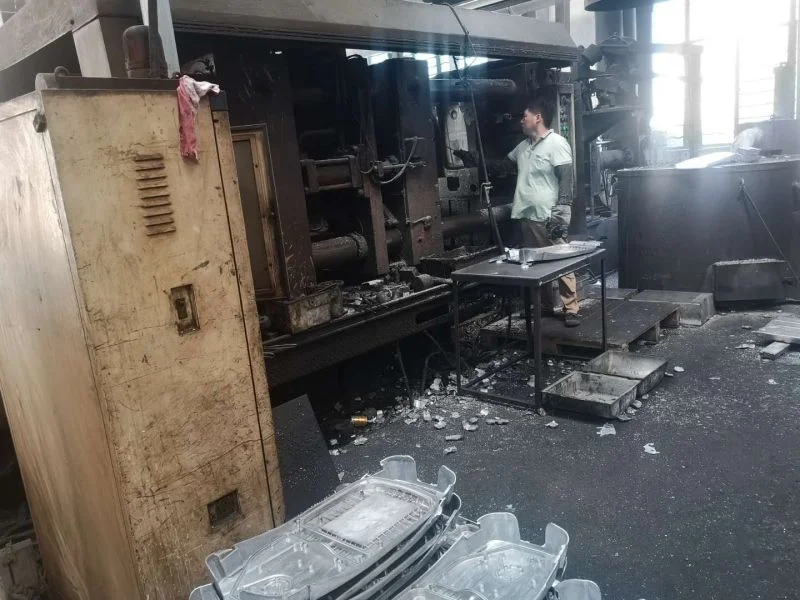

Factory Show
Street Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street Light
LED Street Light Housing Supplier Main Street Light Housings:

Street Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightStreet Light Cover LED Street Lamp Shell Mlt-Slh-Hm-II for Outdoor LED Street LightFAQ

Q1: How could I get a sample?
A1: Email us the models and quantity of our LED light housings you need, and tell us your express account number for shipment, then we send you the PI. When you have transferred the money, send us the TT copy for check. We will send out samples within 3 working days after we get the payment for general models of our LED lighting fixtures.

Q2: How to place an order?
A2: Email order details to sales department including items model number, quantity, destination port (we need it to calculate the shipping cost), selling countries, consignee's contact information including detail address and phone fax number and email address, notify party, etc.

Q3: Could we place order by OEM or ODM style to produce our own brand products in your factory?
A3: Of course you can. Welcome to do OEM or ODM Order for our LED lighting fixtures. What you need to do is to send us the Drawing of your style with products, and we will submit sample or prototype of LED light housings to you for your approval.

Q4: What kind of shipment will you use?
A4: EMS, TNT, DHL, FEDEX, AIR WAY, SEALAND. Because our LED lighting fixtures especially LED street light housings are very heavy, normally we will choose the most economic way for the shipment. But if you need the samples urgently, please kindly remind us.

Q5: How soon we can get the shipment?
A5: It depends on your models of LED light housings you have selected and order volume. Please tell us the models and quantity, so we can confirm with you via Email.
