COB LEDs are basically multiple LED chips packaged directly to a substrate by Moonlight to form a single LED module. The multiple chips take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel.
With the advanced knowledge and packaging technology for years, Moonlight COB LED has excellent reliability and high-flux, multi-die chips in a smaller, easy-to-use platform. With Moonlight LED lighting-class reliability, Moonlight LED array's small, uniform emitting surface enables both directional and non-directional lighting with new levels of flux and efficacy. Moonlight COB LED series covers a wide range of luminous flux from 3W to 300W. The element arrangement of LED package is capable of utilizing light more effectively and higher performance. Due to success of reducing the thermal resistance significantly, Moonlight COB LED creates more options to match luminaire's products design with perfect performance, cost effective, high lumen density, etc.
FeatureCopper lead frame.4640 COB LED series.Excellent color reproduction.Available in a broad range of CCTs from 2600K to 6700K.Wide range of luminous flux and high efficacy.RoHS complaint.Low thermal resistance.Environment-friendly.Long life span and high reliability. Mechanical Dimensions
|Model No.||COB LED MLT-CL-C4640G01-10S03P030DXX|
|Package Structure||Copper Base Chip on Board|
|Reference Assembly||M3 screws and connector|

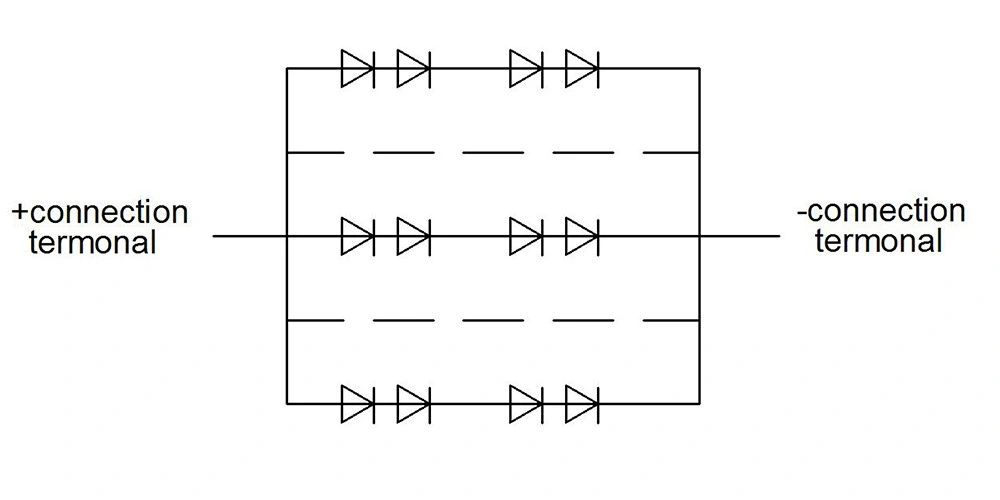

|Die Count in Series||10|
|Die Count in Parallels||03|
|Typical Forward Voltage||30V|
|DC Forward Current||1050mA|
|Typical Luminous Flux||3000lm-3400lm|
|Emitting Color||Warm White/Neutral White/Cool White|
Contact us if you need more details on Chip on Board LED. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Power COB LED、LED Array. If these products fail to match your need, please contact us and we would like to provide relevant information.
