COB LED Mlt-Cl-C2020g01-10s01p010dxx

Product Description

COB LED MLT-CL-C2020G01-10S01P010DXX

 Brief Introduction

COB LEDs are basically multiple LED chips packaged directly to a substrate by Moonlight to form a single LED module. The multiple chips take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel.
With the advanced knowledge and packaging technology for years, Moonlight COB LED has excellent reliability and high-flux, multi-die chips in a smaller, easy-to-use platform. With Moonlight LED lighting-class reliability, Moonlight LED array's small, uniform emitting surface enables both directional and non-directional lighting with new levels of flux and efficacy. Moonlight COB LED series covers a wide range of luminous flux from 3W to 300W. The element arrangement of LED package is capable of utilizing light more effectively and higher performance. Due to success of reducing the thermal resistance significantly, Moonlight COB LED creates more options to match luminaire's products design with perfect performance, cost effective, high lumen density, etc.

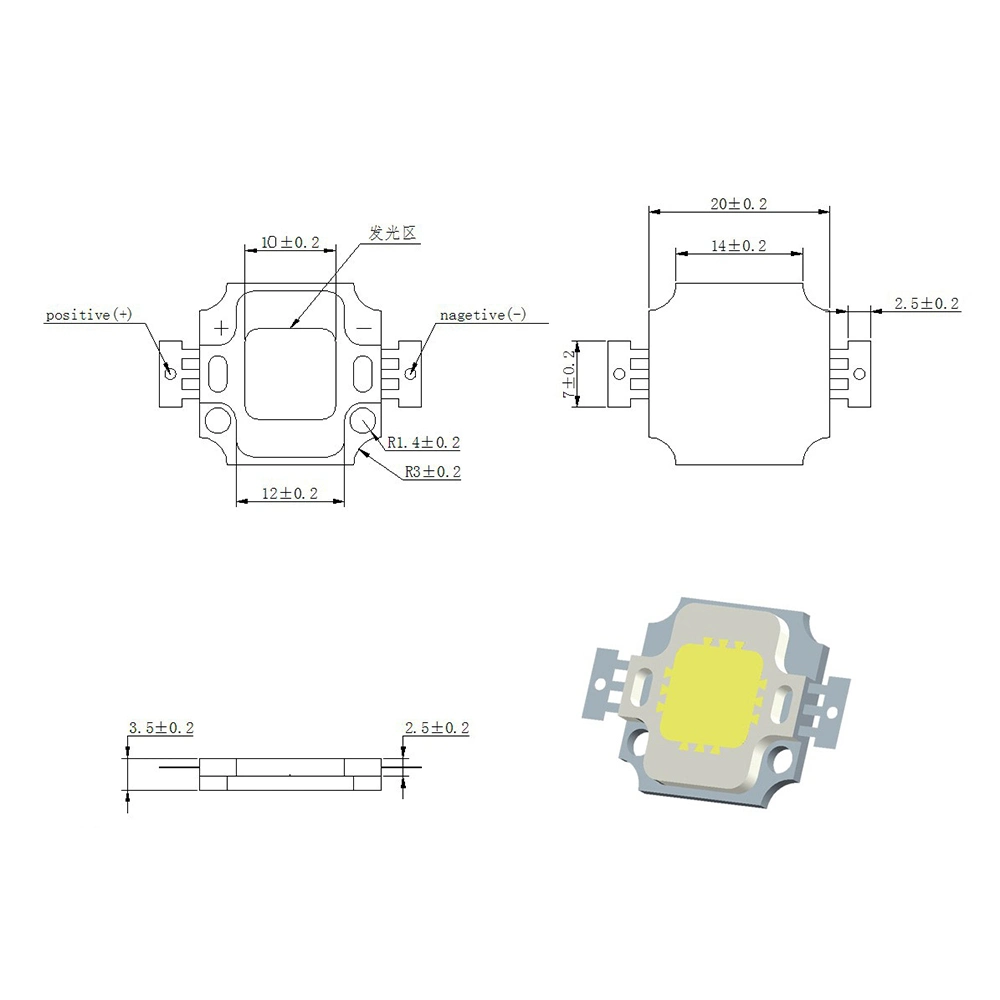

FeatureCopper lead frame.2020 COB LED series.Excellent color reproduction.Available in a broad range of CCTs from 2600K to 6700K.Wide range of luminous flux and high efficacy.RoHS complaint.Low thermal resistance.Environment-friendly.Long life span and high reliability. Mechanical Dimensions


COB LED Mlt-Cl-C2020g01-10s01p010dxx

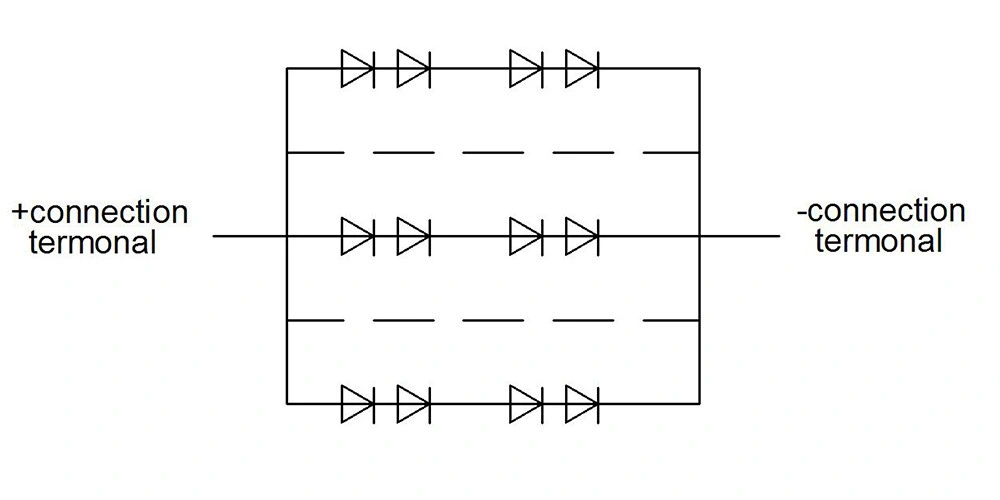

Internal Circuit

COB LED Mlt-Cl-C2020g01-10s01p010dxx10S 01PParameter

Model No.COB LED MLT-CL-C2020G01-10S01P010DXX
Package StructureCopper Base Chip on Board
Packaging Dimension20mm*20mm*3.5mm
Reference AssemblyM3 screws and connector
Die Count in Series10
Die Count in Parallels01
Typical Forward Voltage30V
DC Forward Current350mA
Typical Power10W
Typical Luminous Flux1000lm-1300lm
CRI>80Ra
CCT Range2600K-6700K
Emitting ColorWarm White/Neutral White/Cool White
Viewing angle120°
Operating Temperature-30ºC~+60ºC
Storage Temperature-40ºC~+80ºC

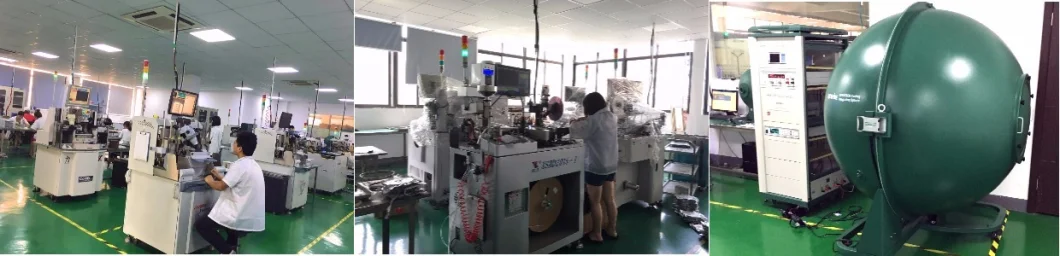

ApplicationMoonlight advanced packaging technology and spectrum tuning technology creates emphasis on the appearance of lighting. It is suitable for commercial lighting especially for luminaires with a narrow beam angle such as LED spot lights, LED downlight, LED track light, etc. LED Package Workshop
COB LED Mlt-Cl-C2020g01-10s01p010dxx


Contact us if you need more details on Chip on Board LED. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Power COB LED、LED Array. If these products fail to match your need, please contact us and we would like to provide relevant information.
